Color steel plate refers to the organic coating or plastic film on the continuous production line coating or pressing on the surface of galvanized plate, cold-rolled plate or aluminum plate, forming a new type of metallurgical products.Color steel plate refers to the organic coating or plastic film on the continuous production line coating or pressing on the surface of galvanized plate, cold-rolled plate or aluminum plate, forming a new type of metallurgical products


Contact:

Mr Jarven

Tel: +86-18563518078

Email: [email protected]

Wechat: +8618563518078 (Whatsapp)


Color Coated Coil:

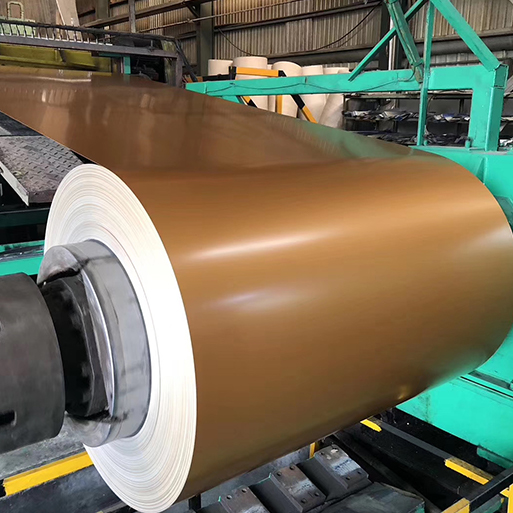

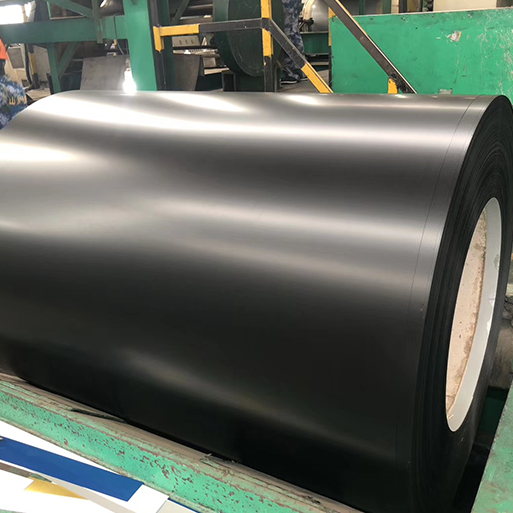

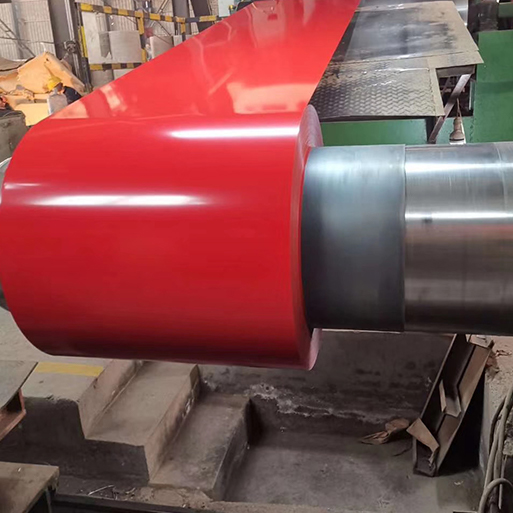

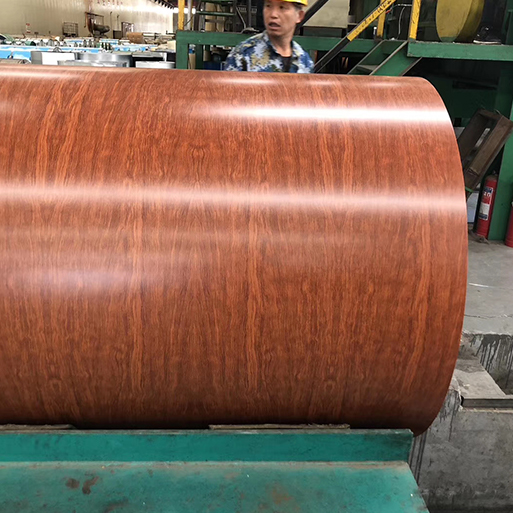

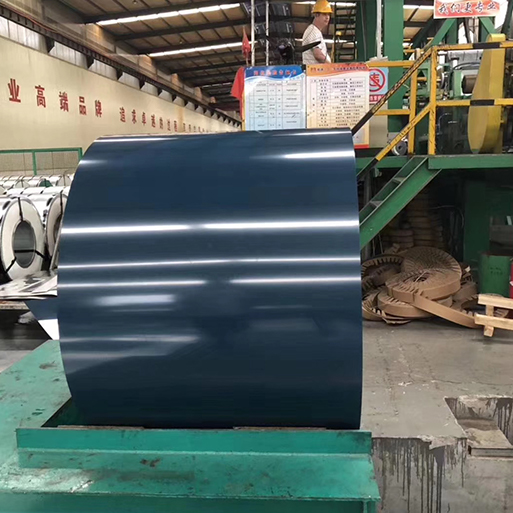

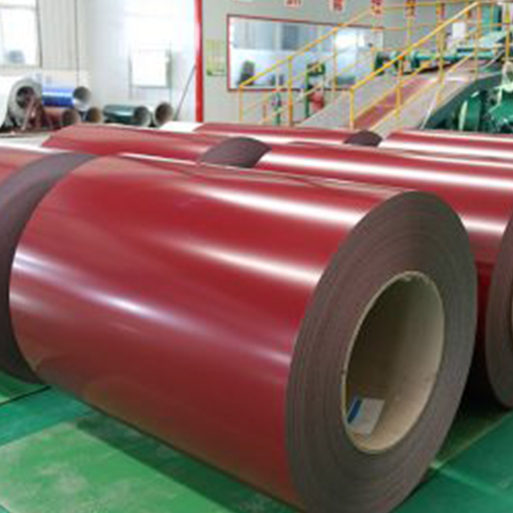

Color coated steel sheet steel coil(PPGI PPGL) has light qualitative, beautiful with good anti-corrosion performance, can direct processing again, color is divided commonly for white, blue, red. It is mainly used in advertising industry, building construction industry, household appliance industry, electric appliance industry, furniture industry and transportation industry. Color coated steel coil uses coating to choose proper resin according to different use environment, if polyester silicon modifies polyester, polyvinyl chloride plastic sol, get together vinylidene chloride to wait. Users can choose according to the purpose.



Contents
Prepainted Galvanized-PPGI
Prepainted Galvalume-PPGL
BASE METAL
GALVANIZED
GALVALUME / ALUZINC
 STANDARDS
JIS G -3312,ASTM A -755 ,
ASTM A 755M,
EN -10169, IS -14246,G300-G550
WITH SUBSTRATE ASTM A792 M
THICKNESS
0.16~1.20 mm
0.16~1.20 mm
Width
600 TO 1300 mm
600 TO 1300 mm
Coil ID
508 & 610 mm
508 & 610 mm
Coil  OD
1700 mm max
1700 mm max
Coil WT
3 TO 8 MT
3 TO 8 MT Max – With ref. to width of coil
Substrate
 Soft, Medium, Hard
 Soft, Medium, Hard
Hardness
YS (Mpa)
240 -700
240 -700
Coating Mass
Z 40-275 (Grams / m2)
AZ 50-150 (Grams / m2)

Paint Systems

Primers: Epoxy, PU
Primers: Epoxy, PU
Polyester (RMP/PE)
Polyester (RMP/PE)
Silicon Modified Polyester (SMP)
Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride (PVDF)
Poly Vinyl Di Flouride (PVDF)
Back Coating: Epoxy, Polyester, PU
Back Coating: Epoxy, Polyester, PU
Coating
20 – 50 Microns
20 – 50 Microns
Thickness
top can 3 coats and back can 2 coats
top can 3 coats and back can 2 coats
Colour
As Per RAL Chart/Customer requirements.
As Per RAL Chart/Customer requirements.
Surface Finishes
Glossy and Matte
Glossy and Matte
Cut to length
200mm-5000mm
200mm-5000mm
Slits
30mm and above
30mm and above
