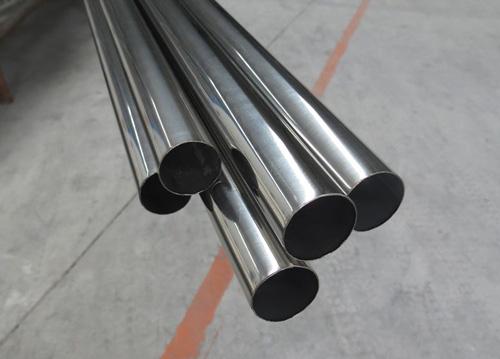

304 decoration stainless steel tube

Decorative pipe is a kind of welded pipe, which is widely used in decoration industry.Steel pipes are usually welded from steel or steel strips after they have been curled and formed by machine sets and dies.With”Simple production process”, “high production efficiency”, “more varieties” and “specifications”, “less equipment cost”.

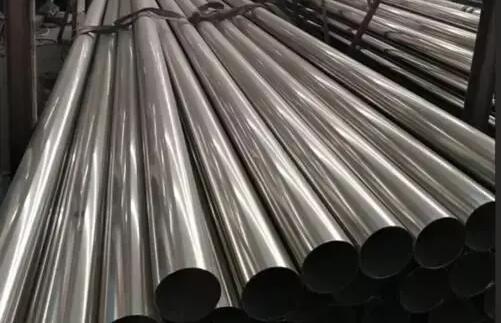

304 Welded Stainless Steel Tube

304 stainless steel welded pipe is referred to as 304 stainless steel welded pipe. Stainless steel welded pipe is usually made of stainless steel sheet or strip after being curled and formed by machine and die.

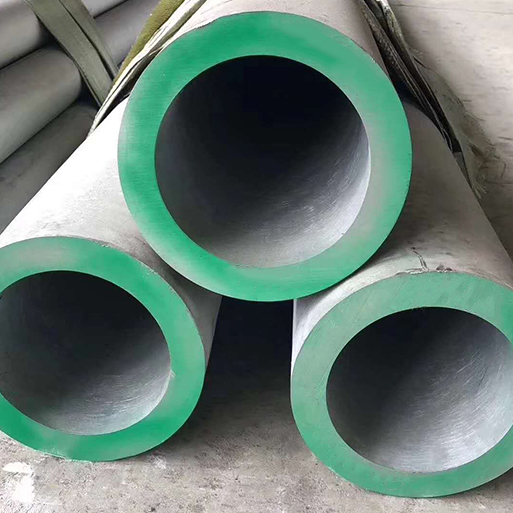

304 Stainless steel seamless pipe

304 Stainless steel seamless pipe is a kind of long steel with hollow section and no joint around it.The process of this product determines its limited performance. Generally, the precision of seamless steel tube is low: uneven wall thickness, low brightness inside and outside the tube, high cost of length fixing, and there are pits and black spots on the inside and outside surface which are not easy to remove; its detection and shaping must be off-line processed. Therefore, it embodies its superiority in high pressure, high strength and mechanical structure materials.

Chemical composition and Physical property

Grade	C(%)	Si(%)	Mn(%)	Cr(%)	P(%)	S(%)	N（%)	Ni(%)	Cu(%)
304	≤0.08	≤1.00	≤2.00	18.00-20.00	≤0.045	≤0.03	≤0.10	8-11	---

Grade	TS(Mpa)	YS(Mpa)	EL(%)
304	≥520	≥205	≥40

Standard specifications for stainless steel pipe

inch	DN (mm)	OD (mm)	SCH5S	SCH10S	SCH10	SCH20	SCH30	SCH40	SCH60	SCH80	SCH100	SCH120	--
1/8''	DN6	10.3		1.24				1.73		2.42
1/4''	DN8	13.7		1.65				2.24		3.02
3./8''	DN10	17.1		1.65				2.31		3.2
1/2''	DN15	21.3	1.65	2.11				2.77		3.73
3/4''	DN20	26.7	1.65	2.11				2.87		3.91
1''	DN25	33.4	1.65	2.77				3.38		4.55
1 1/4''	DN32	42.2	1.65	2.77				3.56		4.85
1 1/2''	DN40	48.3	1.65	2.77				3.68		5.05
2''	DN50	60.3	1.65	2.77				3.91		5.54
2 1/2''	DN65	73.0	2.11	3.05				5.16		7.01
3''	DN80	88.9	2.11	3.05				5.49		7.62
3 1/2''	DN90	101.6	2.11	3.05				5.74		8.08
4''	DN100	114.3	2.11	3.05				6.02		8.58		11.13
5''	DN125	141.3	2.77	3.4				6.55		9.53		12.7
6''	DN150	168.3	2.77	3.4				7.11		10.97		14.27
8''	DN200	219.1	2.77	3.76		6.35	7.04	8.18	10.31	12.7	15.09	18.26
10''	DN250	273.1	3.40	4.19		6.35	7.8	9.27	12.7	15.09	18.26	21.44
12''	DN300	323.9	3.96	4.57		6.35	8.38	10.31	14.27	17.48	21.44	25.4
14''	DN350	355.5	3.96	4.78	6.35	7.92	9.53	11.13	15.09	19.05	23.83	27.79
----
